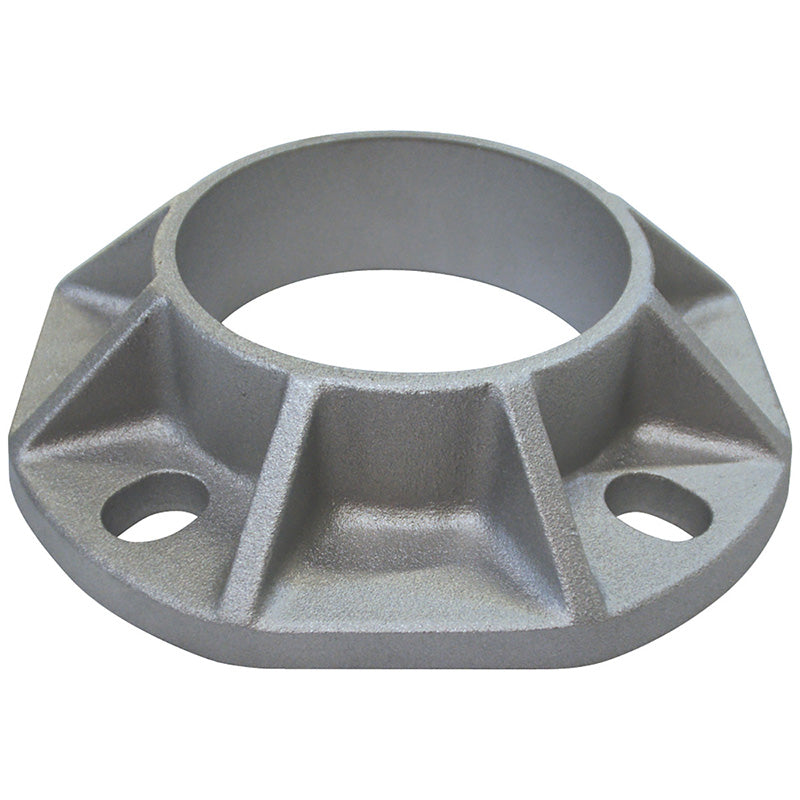

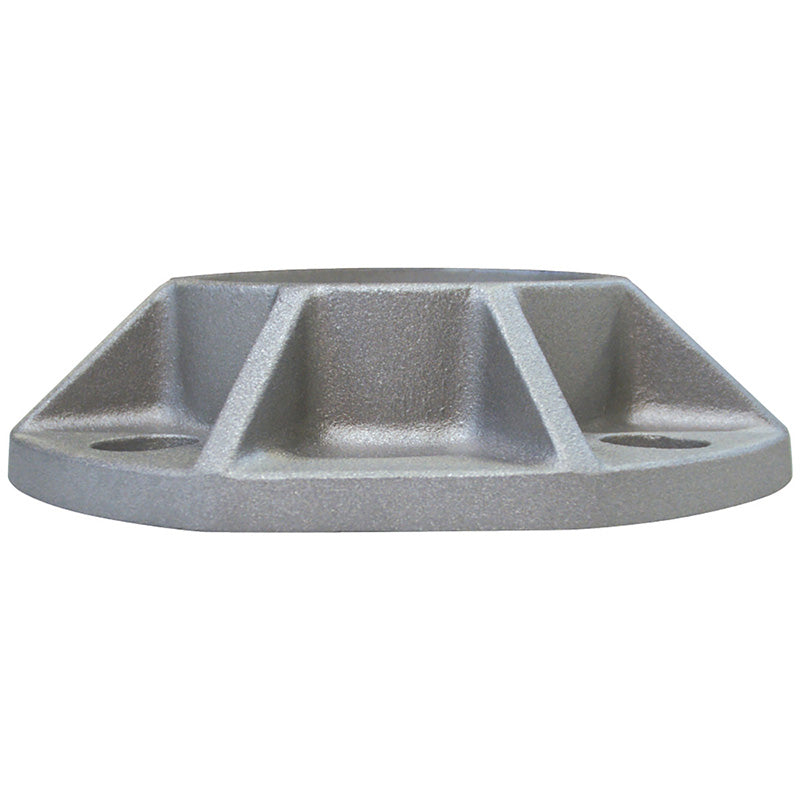

Regular Shoe Base

*Alternative bases cannot be sold separately. Must be added at time of purchase of flagpole.

*In addition to a shoe base, a mandrel is inserted into pole for added structural support

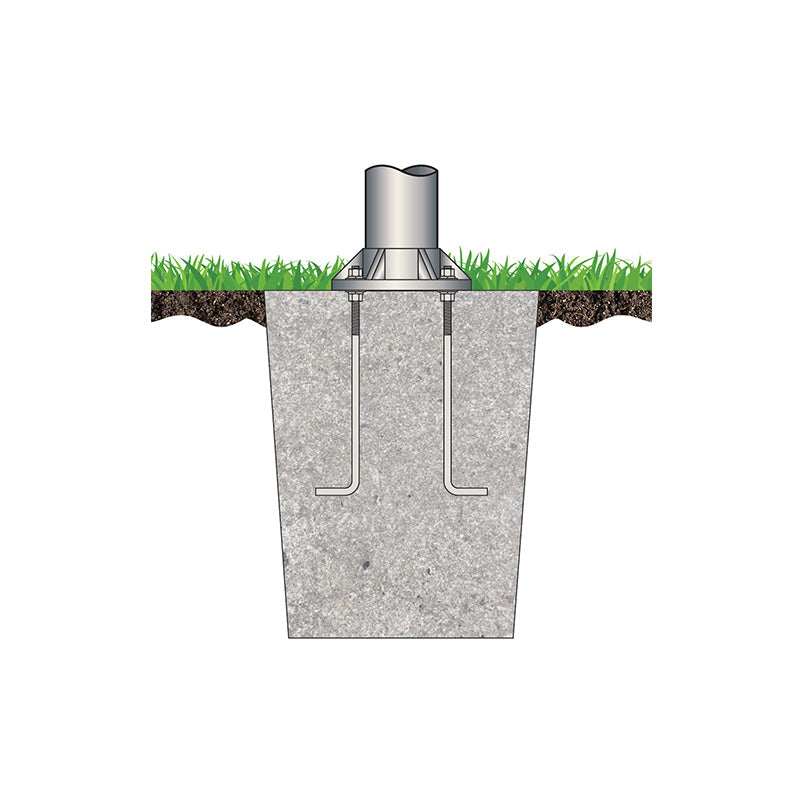

All of the cone tapered aluminum flagpoles can be supplied with a shoe base mounting. The aluminum base is circumferentially welded to the flagpole shaft. A spun aluminum flash collar is supplied as standard unless otherwise specified. Anchor bolts are furnished for mounting to a concrete base.

• Adding any shoe base mount will reduce the wind rating of the flagpole

• Shoe base mounts are recommended for grade level mounting only

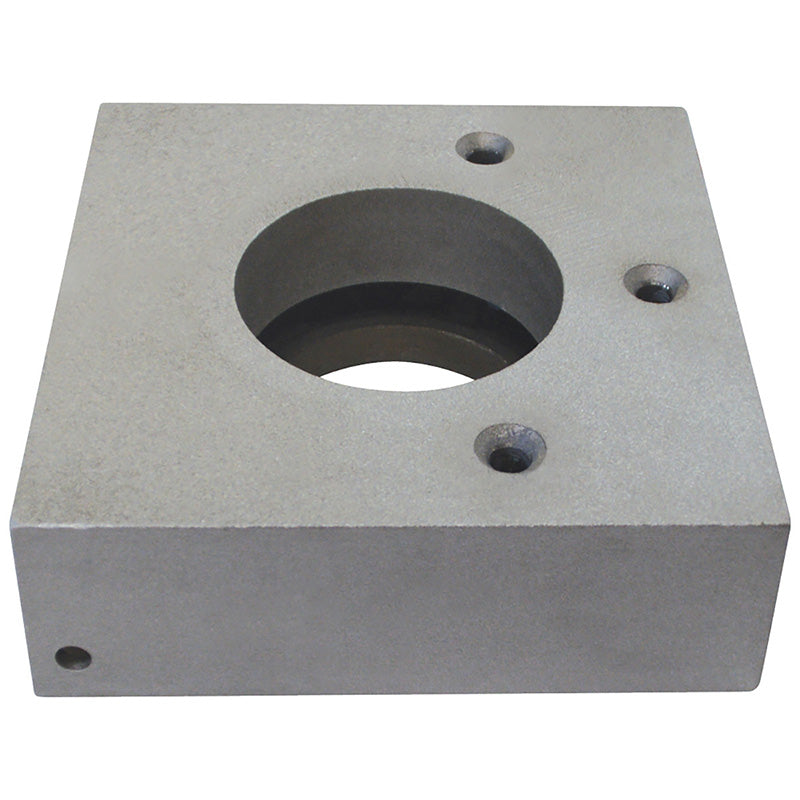

Tilting Shoe Base

*Alternative bases cannot be sold separately. Must be added at time of purchase of flagpole.

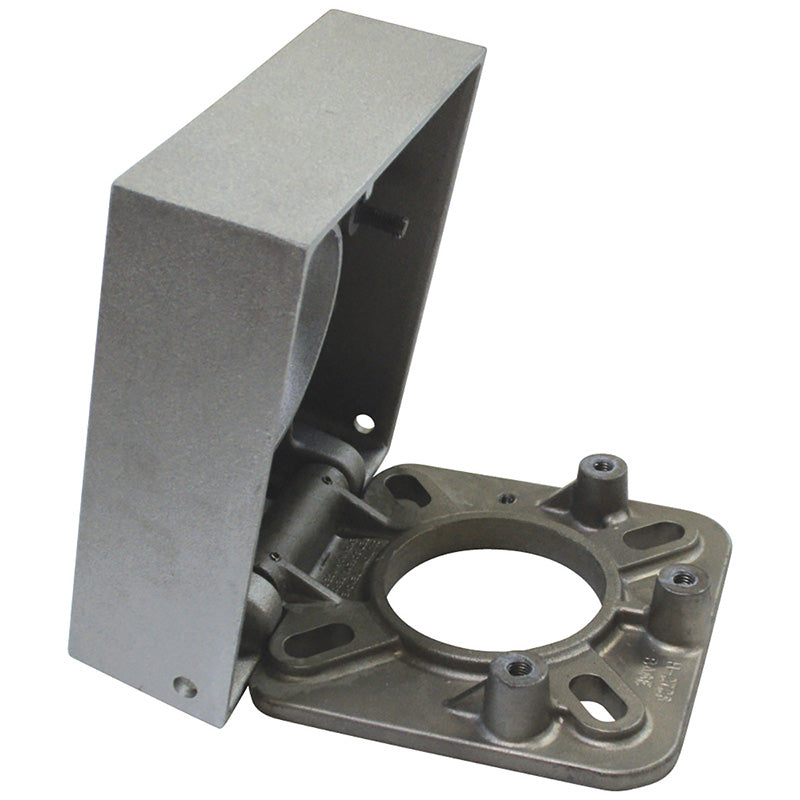

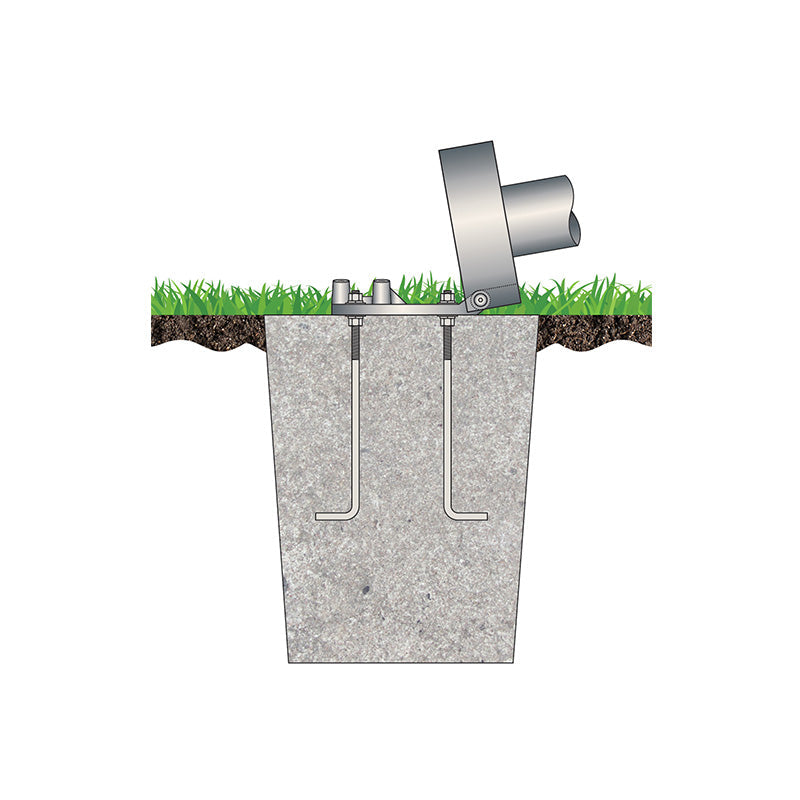

All of the cone tapered aluminum flagpoles with a 3", 4",5" or 6" butt diameter can be supplied with a tilting shoe base. The tilting base is circumferentially welded to the base eliminating the need for a flash collar. The hinged portion of the base is held in place by (3) stainless steel, allen head bolts and pivots on a solid aluminum pivot rod. Anchor bolts are furnished for mounting to a concrete base. Not recommended for nautical poles.

• Maximum flagpole height for tilting shoe base mount is 30' exposed

• Tilting Shoe base is not available with the hurricane series flagpoles
• Adding any shoe base mount will reduce the wind rating of the flagpole

• Shoe base mounts are recommended for grade level mounting only
