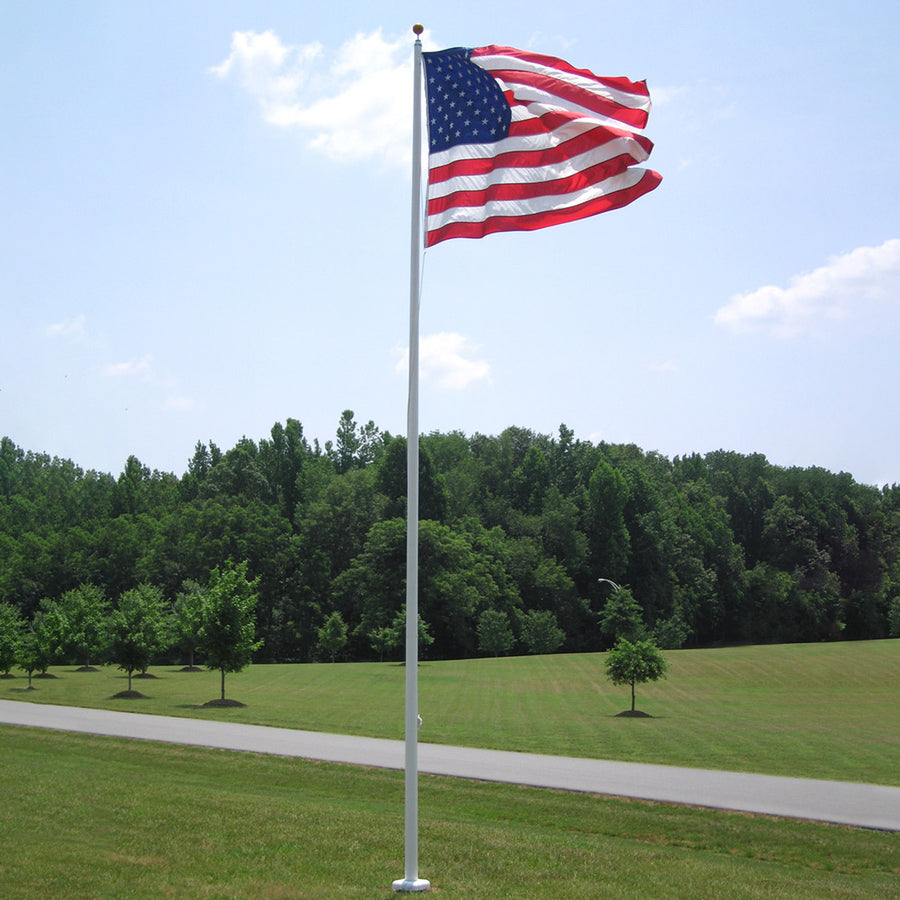

ATLAS EXTERNAL HALYARD FLAGPOLES SERIES

SKU:   ATLAS20

Size: 20

$1,189.99

The Atlas Series of flagpoles from Flags Unlimited feature an external halyard system. This flagpole is more suited for those who are looking for a heavier duty external halyard flagpole compared to our residential flagpoles. Perfect for commercial and residential settings. The flagpole comes with a variety of standard accessories including a gold ball ornament, flag snaps, and spun aluminum flash collar.

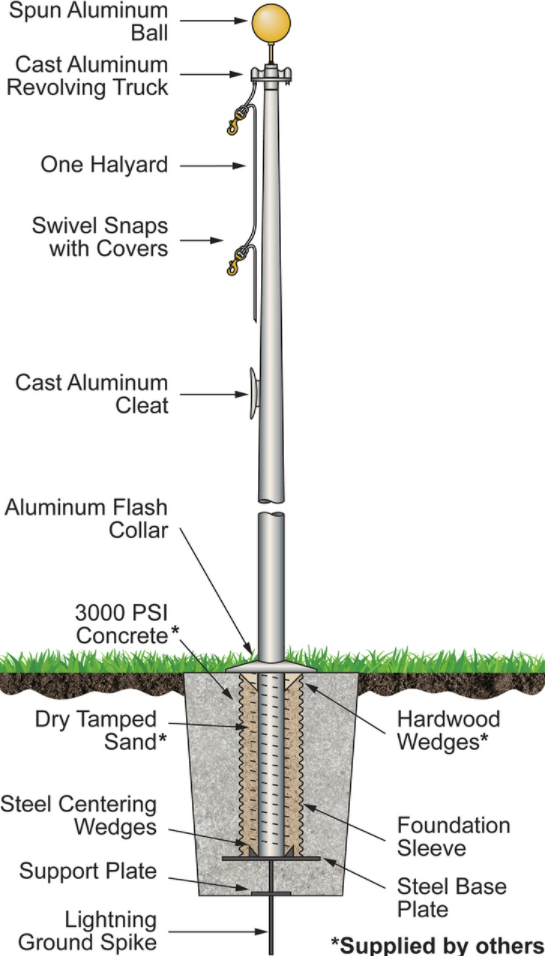

The flagpole requires an in-ground mount and a galvanized steel foundation sleeve for proper installation. Professional installation or delivery is offered for the Grand Rapids area. Shipping nationwide is offered at an additional cost.

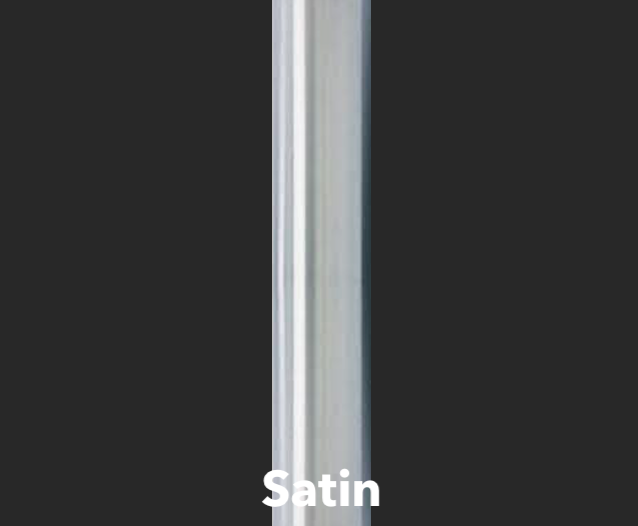

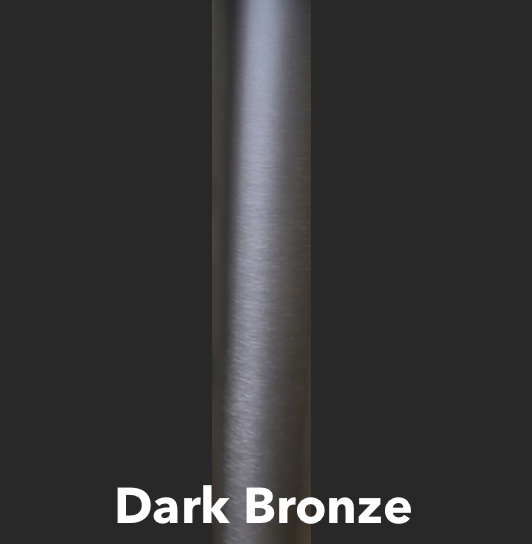

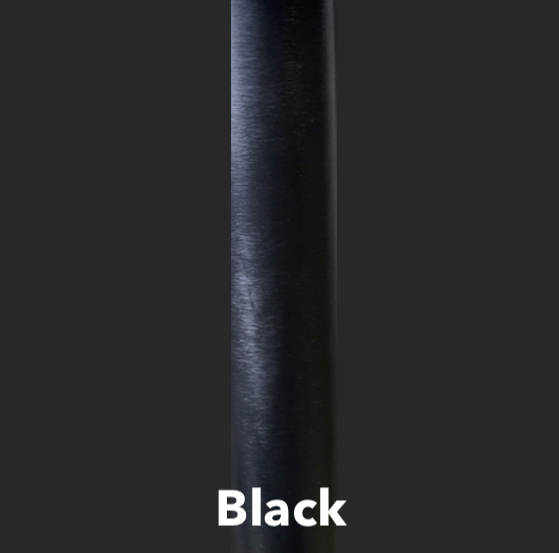

Available in standard satin finish, however we also offer clear, bronze and black anodized at additional cost.

Specs & Dimensions

Flagpole Exposed Height Flagpole Total Length # of Sections Butt Diameter Top Diameter Max Flagged Windspeed Suggested Flag Size
20' 22' 1 4" 2 3/8" 120+ MPH 3X5'
25' 27' 1 4" 2 3/8" 104 MPH 4X6'
30' 33' 1 5" 3" 75 MPH 5X8'
35' 38.5' 1 5" 3" 91 MPH 6X10'
40' 44' 2
8" 3-1/2" 91 MPH 8X12'
60' 66' 3 10" 4" 91 MPH 12X18'


Each flagpole includes the following:

  • Gold anodized aluminum ball ornament

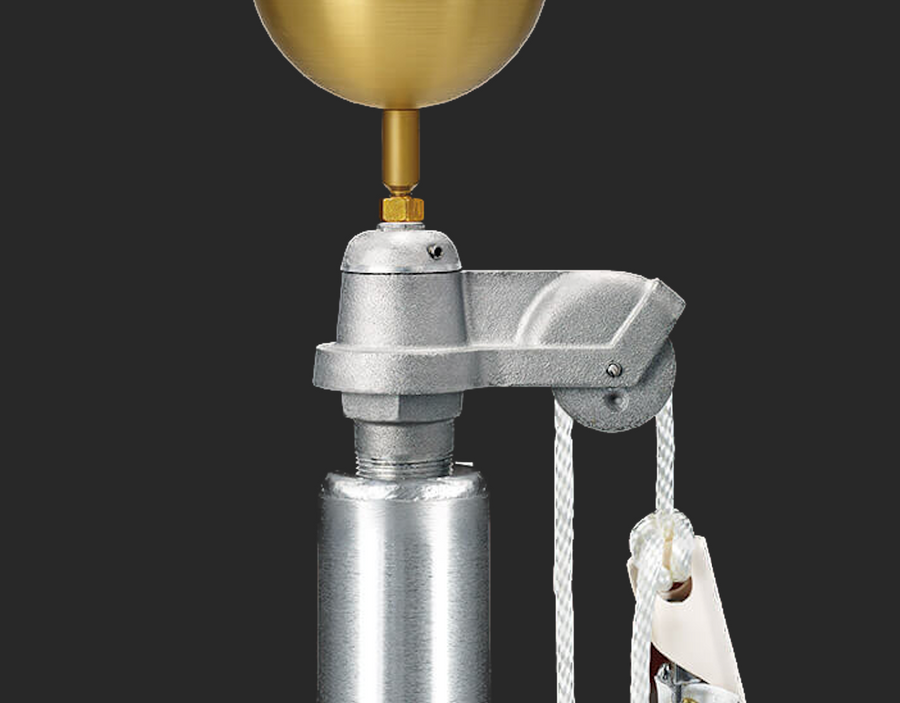

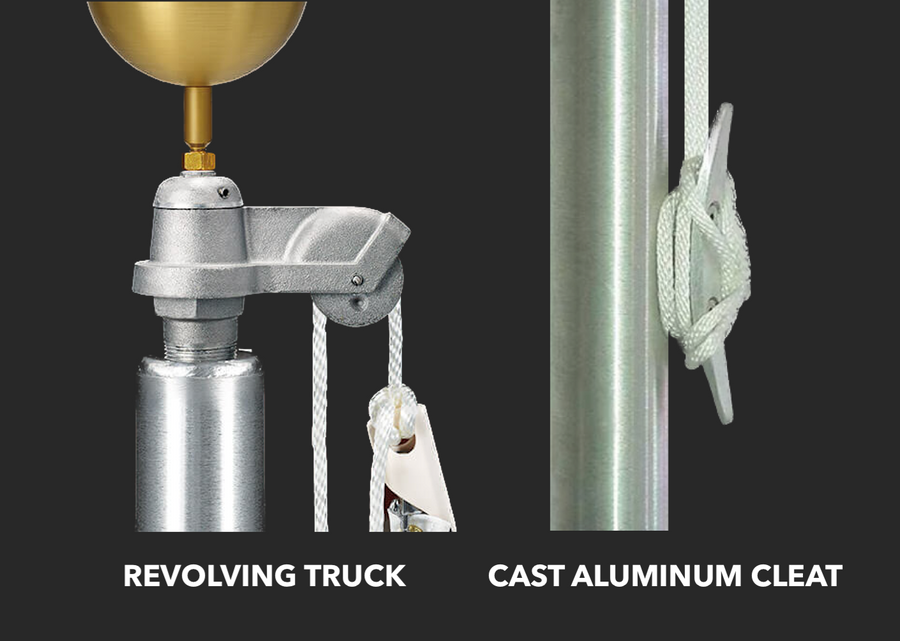

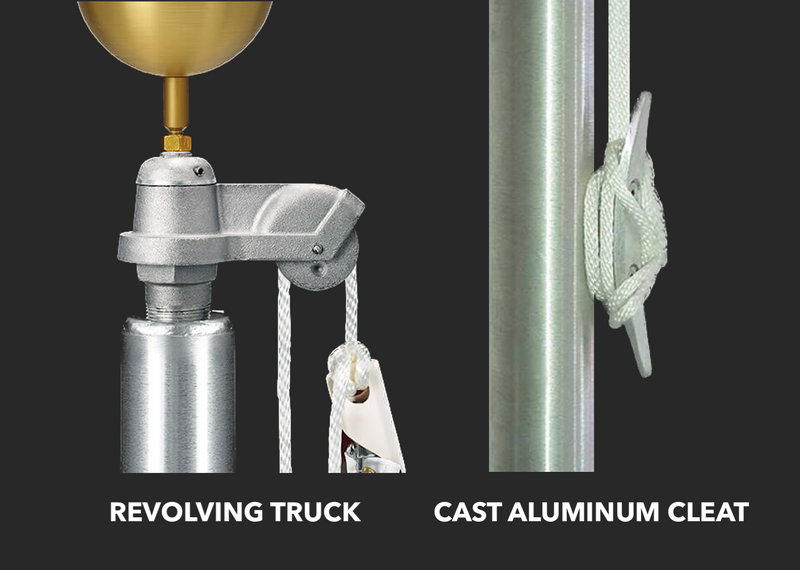

  • Cast aluminum revolving truck with pulley
  • Solid braided polypropylene halyard
  • Swivel flag snaps w/vinyl snap covers
  • Cast aluminum cleat with mounting screws
  • Spun aluminum flash collar
  • Galvanized steel foundation sleeve
  • Flag sold separately

If you have any questions, please don't hesitate to call us at 616.243.2600 or email us at sales@flags-unlimited.com
