SKU:   VAN20

Size: 20'

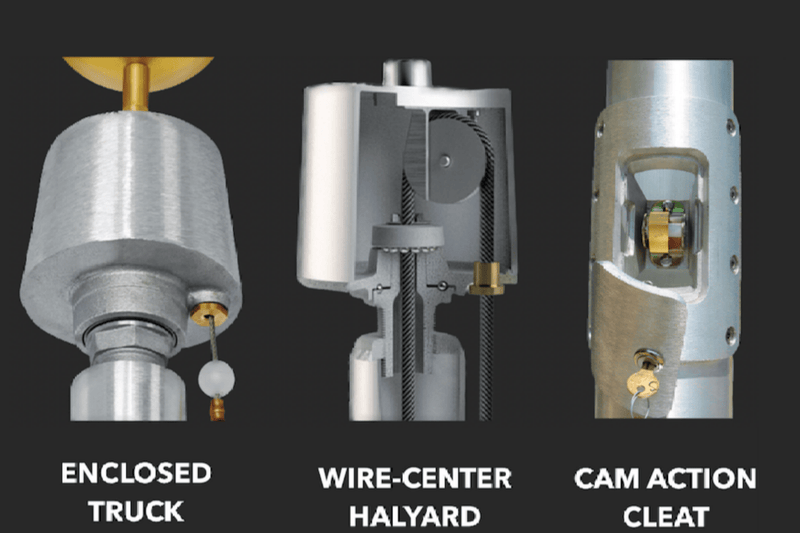

The Vanguard Series of flagpoles from Flags Unlimited feature an internal halyard system to protect the flagpole from vandals. This flagpole is more suited for commercial settings. The halyard is easy to operate using a stationary truck and cam-action cleat located within the flagpole, behind a lockable access door. The flagpole comes with a variety of standard accessories including a gold ball ornament, flag snaps, and spun aluminum flash collar.

The flagpole requires an in-ground mount and a galvanized steel foundation sleeve for proper installation. Professional installation or delivery is offered for the Grand Rapids area. Shipping nationwide is offered at an additional cost.

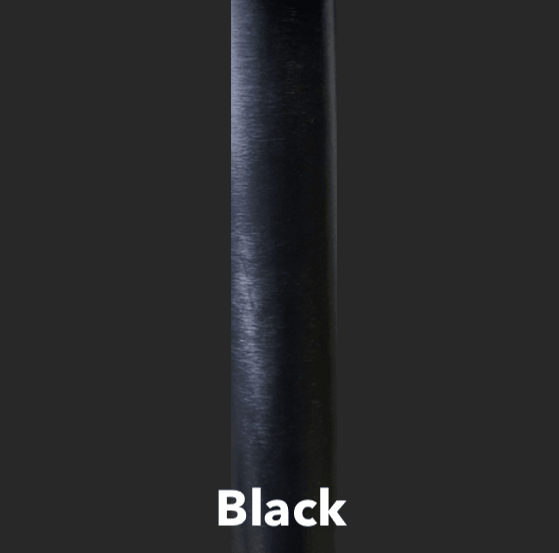

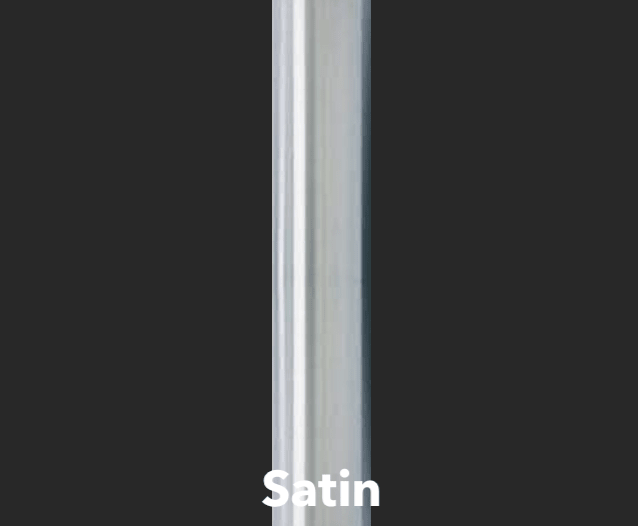

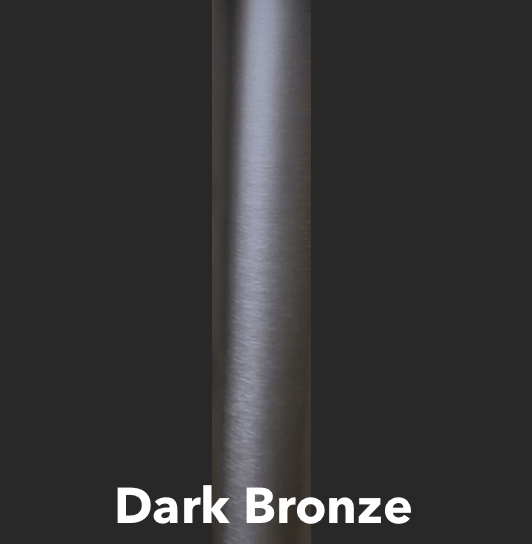

Available in standard satin finish, however we also offer clear, bronze and black anodized at additional cost.

Specs and Dimensions

Flagpole Exposed Height Flagpole Total Length # of Sections Butt Diameter Top Diameter Max Flagged Windspeed Suggested Flag Size
20' 23' 1 5" 3" 120+ MPH 3X5'
25' 27' 1 5" 3" 104 MPH 4X6'
30' 33' 1 5" 3" 75 MPH 5X8'
30' HEAVY 33 1 5" 3" 91 MPH 5X8'
35' 38.5' 1 6" 3-1/2" 91 MPH 6X10'
40' 44' 2
7" 3-1/2" 91 MPH 8X12'

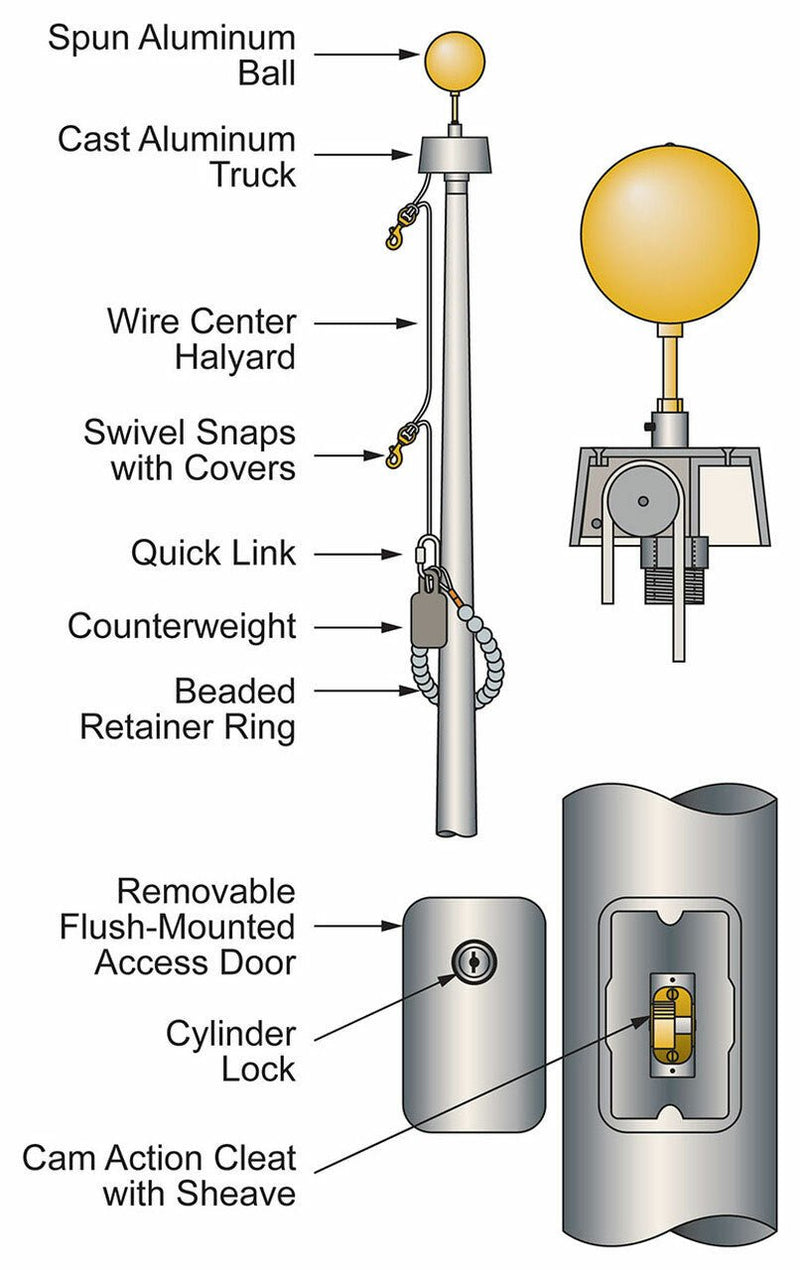

Each flagpole includes the following:

• Gold anodized aluminum ball ornament

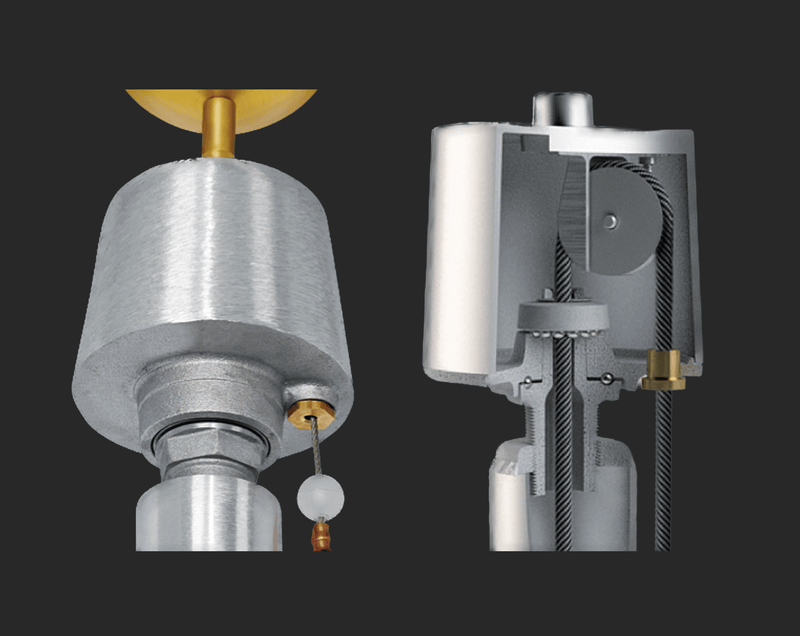

• Cast aluminum revolving truck on all flagpole models

• 5/16" Nylon wire center halyard

• Swivel flag snaps w/vinyl snap covers

• Retainer ring and counterweight

• Stainless steel quick link

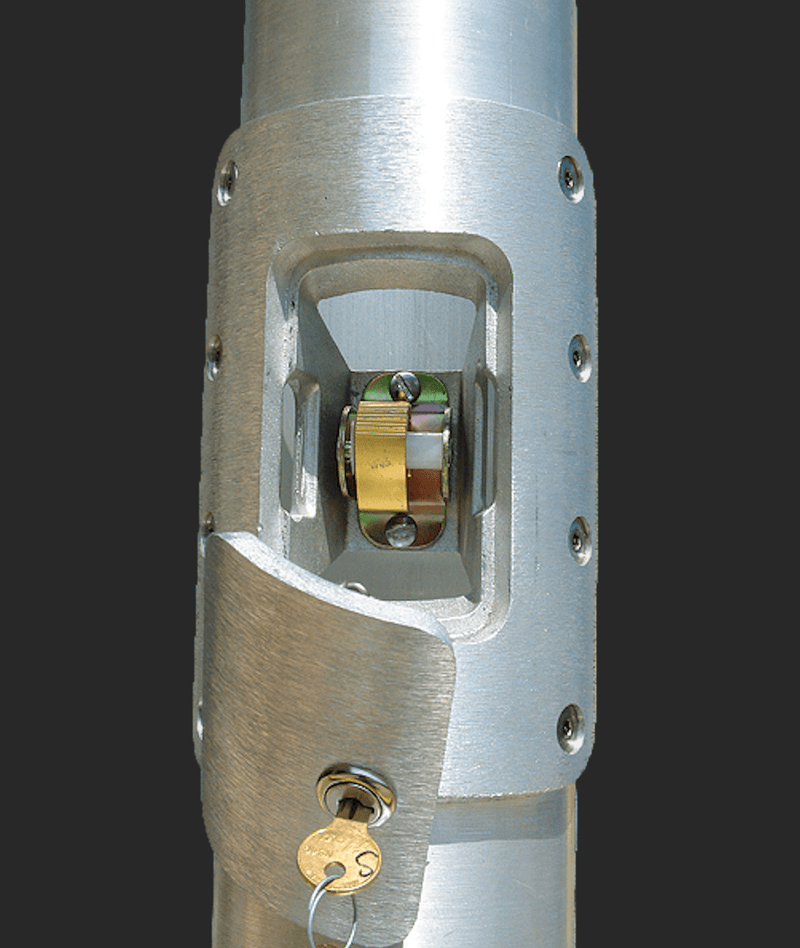

• Cam action cleat (accessible behind a lockable access door)

• Spun aluminum flash collar

• Galvanized steel foundation sleeve

Flag sold separately

If you have any questions, please don't hesitate to call us at 616.243.2600 or email us at
